Default Variables on Choices in Visual Flow

One of the pieces that can be a bit difficult in Visual Flow to work with is having the Default value in a dropdown.  There could be a number of different reasons you’d like to have a dropdown or other type of Choice field to reference existing values.  However, it’s not the most straightforward inside of Visual Flow.  Also, the User Experience isn’t perfect, but it is very functional.  This post is going to be more conceptual than walking through all of the parts of creating and connecting a Visual Flow.  With that in mind, I am making the assumption that we’ve already got our Record Lookup, Picklist Field Variable assigned, and the other basics setup.

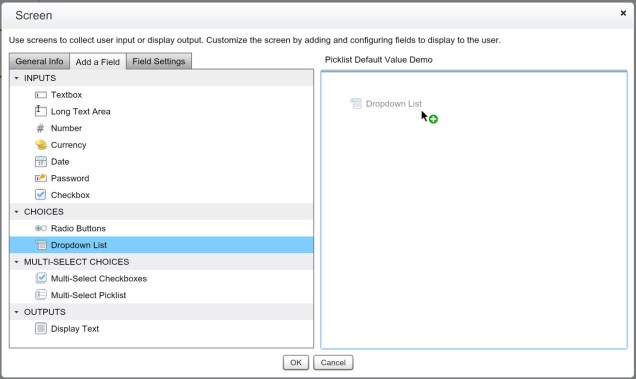

First let’s drag on our Dropdown Field into our Screen Element.

DragDropdown

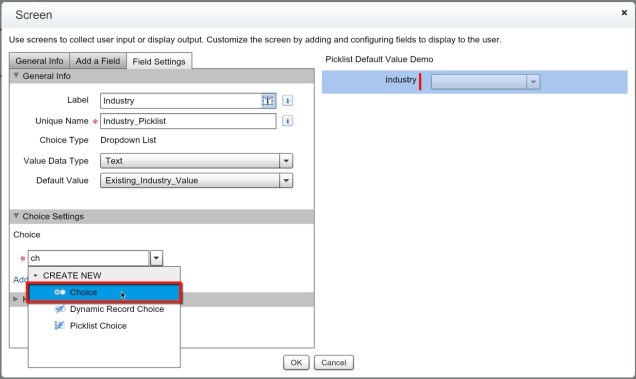

Now, let’s create our Choice that will be our “Default” value.

SelectNewChoice

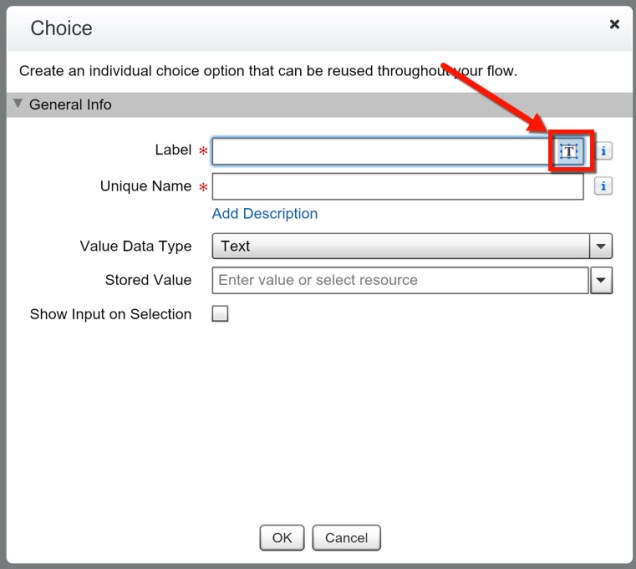

As we create the Choice, notice the “T” on our Label so that we can use a Rich Text Editor on the Label.  Not something you typically think of with the Label of a Choice, but it’s there for you!

Label

When we’re in the Rich Text Editor for our Choice’s Label, we just need to drop in the Variable we used in our Lookup that has the Default value.  Note… you can get as creative as you want with the label here.

IndustryLabel

It might also be safe to put in a default value for the variable with something like “– Please Select –” in the scenario that the field is blank on the record.  Cause, if the Industry variable in the above example is empty, the API name of the Choice will be used instead.

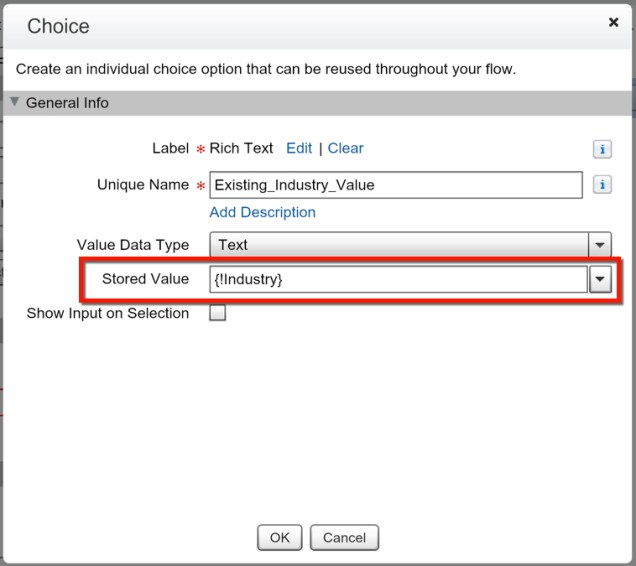

Now, we need to set the Stored Value of this Choice to be the Variable as well.  This means, that if they don’t modify the selection in the Dropdown that the current value will be what is updated on the record … so don’t miss this and make the value get cleared out because the Stored Value is null.

StoredValue

Now, setup the other Choice value(s) that you want to use.  In this scenario, I’m just going to use the default Picklist field of Industry.

Choices

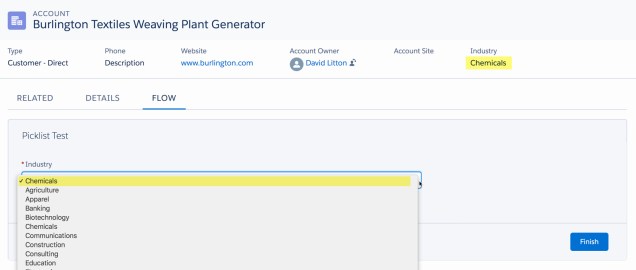

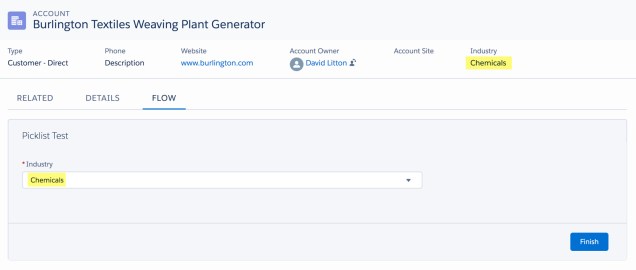

Now, when used in action, it looks like this:


DefaultValue2

And, just like that we’ve defaulted a Choice field in Visual Flow!  Simple to do, but easy to overlook.  This little trick came from the Salesforce Discord channel: https://discord.gg/D8YGZkN, so give that a look if you use Discord.



Keep your Automation Simple

I’ll start this off by saying I’m guilty of not always keeping it simple.  But, I strive for simplicity.  Just because you can build something in Salesforce 10 different ways, doesn’t mean all 10 of those ways are right.  The solutions we implement often have a great deal to do with the skills and budget your Org has available.  Back when I was a Solo Admin, I was very guilty of duct taping together solutions, because the alternative solution was to have nothing.  We didn’t have the budget to hire developers for all of our ideas.

The purpose of this post is to discuss how we can simplify our solutions to make them easier for us to comprehend and maintain.  We’re going to walk through this set of requirements our project champion gave us:

  1. On Closed Won Opportunities, Alert Accounting with an Email
  2. Automatically Create a new Project for our Account Manager to run.
  3. Update the Account Owner to be the Account Manager
  4. Alert the Account Manager of their new Project, with a link to take them straight to the project.

Let’s take a first pass at solving this…

kiss-option-1

This accomplishes everything that we were looking to do.  We can now send the project champion a note saying that it has been completed… right?  Hold on!

Looking at this solution from end-to-end, how easy is this going to be for me to maintain?  On the surface, it’s pretty basic, but would an outsider easily comprehend it?

Let’s take another pass at simplifying it…

kiss-option-1b

We were able to simplify our automation by putting the Email Alerts into the Process Builder and Flow.  This looks easier to maintain and understand than our first process.  I would be tempted to call it quits here, but I think we could simplify the process further.

So, let’s take one last pass at simplifying this…

kiss-option-2

I’m feeling pretty good about this now.  Everything is in one location, and I can see all of my automation around this scenario in one spot!  Personally, I would go with our third and final solution if I was going to implement this automation.  Don’t go crazy and (when possible) and have Workflow Rules, Process Builder, Flow, and APEX all working together for one piece of automation.

Assigning Variables to Flows in Lightning Pages

As of Spring ’17, we will have a much easier User Experience for anyone attempting their first Flow in a Lightning Page.  You now are able to pick which variable you want to pass the Record ID into.  Sounds great, right?  Let’s dive right in!

Select the variable to pass the Record ID into

Now with the check of a box, you’re able to select which variable you want to pass the Record ID into.  You can name it whatever you’d like now!  Also, you can pass in a static value into any of the variables, so that you’re able to tell where your Flow might have been used (since you can have a different Lightning Page for different Record Types or Apps.

flowlightningpage

What if you already setup a Flow when this was launched in Winter ’17?  Don’t worry, Salesforce has you covered:

If you created a Text input variable called recordId for the flow component during Winter ’17, the checkbox is automatically selected when your org upgrades to Spring ’17. This default selection happens only when your org upgrades to Spring ’17. If you create a Text variable called recordId in Spring ’17 or later, the checkbox is not selected by default.

Things to consider

#1 – No Merge Fields (for now)

Many of you are probably thinking about passing in a merge field.  You’ll need to hold off on that for the time being.  My guess is it might come in the future, once this is Generally Available and out of BETA.  But, for now, if you try and get clever and use something like {!Record.Name} or {!Account.Name} you’re going to have a bad time!

lightningpageflowerror

#2 – Keep your Inputs Clean

I touched this on my Flowception post (essentially, making your Flows reusable), but you’ll want to make sure that you only make the variables you need to an Input Type.  If you have too many variables marked as Input or Input and Output, you’re going to have a long and cluttered list.  Be thoughtful and only make a variable an Input if it needs to be.







Parse a Multi-Select Value in Visual Flow [Unmanaged Package included]

In my post on using a Flow inside another Flow, I mentioned wanting to create a Flow that could be re-used for the problem of needing to parse a Multi-Select value.  So, here it is!

Unmanaged Package:

https://login.salesforce.com/packaging/installPackage.apexp?p0=04ti0000000YDzU

Let’s talk about what is in this Unmanaged Package, so that you understand what you’re installing into your Org.  I want you to be able to easily reference this Flow for any use cases you might have.  So, that is why it is listed as Unmanaged and why I’ll have this detailed blog post on what is going on.

Flow Overview

parse-flow-image




Let’s talk about what each of these Elements are doing.

Remove Brackets

The Remove Brackets Element is cleaning up the input String that we have.

Remove Brackets Formula.jpg

The Formula (sorry, it doesn’t want to stay formatted for me):

TRIM(
SUBSTITUTE(
SUBSTITUTE(
{!input_MultiSelectString},
“[“,””),
“]”,””),
) + “;”

Note: I am cleaning up the original Input variable.  After I clean the variable, I am assigning that new value (my Text Formula above) to the new Text Variable called Multi_Select_Value.

removebrackets

Add Left Value

What we want to do now, is grab the Left value in our String and add it into a Collection Variable.  This will be what you can Loop through to perform login on.

Grab Left Value Formula.jpg

The Formula:

(LEFT({!Multi_Select_Value},FIND(“;”,{!Multi_Select_Value})-1))

grableft

Remove Last Parsed Value

Now that we’ve successfully added the first value into our Collection, we want to remove that value and its semicolon from the String.  This will allow us to then see if we have remaining values or not in our next element.

removelastparsedvalue

The Formula:

(RIGHT({!Multi_Select_Value},LEN({!Multi_Select_Value})-FIND(“;”,{!Multi_Select_Value})))

removeparsed

Remaining Values to be Parsed?

All we’re doing here is checking to see if the value of Multi_Select_Value is null or not.  If it is null, then we want to exit the Flow and send out our Output.  If it is not null, we want to continue along and keep parsing until we have a null value.

decisionofparse





How to Guide Users Submitting Records for Approval with Visual Flow

I’ve often thought that the Submit for Approval Button in Salesforce could use some work.  It really doesn’t give the User any good information for why they might not meet the criteria for submitting their record for approval.  Isn’t there a better way?  I think so!  With the use of Visual Flow we’re able to guide the User through a tailored experience to help them submit their record with ease!

We’ll do this by querying the record(s) that we need to access, and then using decisions to determine what might be missing and present the User with the option to update the key fields missing.  In my example I’ll just keep it simple by looking for the Amount field.  If they haven’t filled out that value already, we’ll ask for them to update the Opportunity with the Amount before they can proceed to submitting the record for approval.  Let’s get started!

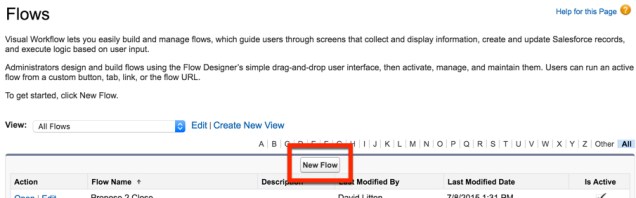

Navigate over to create a new Flow. (Setup | Create | Workflows & Approvals | Flows)

New Flow

The first step is going to be grabbing our Record Lookup.

drag-oppty

We’ll need to set the Record Lookup to find the Opportunity that matches the Opportunity ID variable we setup (and pass in through our Button – see How to write a Button URL for your Flow if you need a refresher on this).

var_oppid

I’ll also create a variable to store the Amount of our Opportunity.  This will allow us to reference the value.

opprecordlookup

Note:  We could technically pass additional values in our Button, or any number of fields that we want to (besides Currency to Currency, is a limitation within URL).  Regardless of the ability to do it or not, I like to try and keep the complexity in one spot (in the Flow), as opposed to multiple (the Flow and Button).  Also, we’re not expecting this to run in batch as it is only going to happen when a User clicks the button, so we’re not as worried about an extra query (typically).

Alright, so we’ve got our Amount field.  Now, we want to drag in our Decision Element to determine if we found a value in it or not.


For our example, all we need to check is if the Amount is greater than 0.  We’ll use the Default Outcome in this scenario to take our User to a Screen to fill out the Amount before we submit for approval.  If we were checking multiple fields, this decision logic could get more complicated (depending on how customized you wanted to the experience to be).


I enjoy finishing a part of any automation I setup, so lets drag in our Submit for Approval Element and knock out this part of our Flow.  Then we can worry about the Default Outcome routing.

Submit for Approval drag.jpg

All you have to do is pass in the Opportunity ID as the Record ID.  Nice and easy!

oppsubmitforapproval

Great, so let’s jump into the other route of the Decision, when someone needs to fill out the Amount of their Opportunity.


On our Screen, we simply give a nice message to our User alerting them of what is expected.


I would recommend passing in variables like the Opportunity Name, Account Name, and other key fields into your Text Template.  You want the User to be confident of what record they’re currently updating.

We’ve now got to drag out a Assignment Element and update our Amount variable with the entered Amount.  I like to use Assignments after Screen Elements so that if I’m using multiple Screen Elements I can consolidate the values into one variable.


Now, make sure you’re setting the variable value to the Screen Input field correctly.  It can be easy to make a mistake here and assign the wrong value!

varassignment

We’ve now got to drag out a Record Update and update our Opportunity with the entered Amount.

dragupdate

Now we just need to add in the Amount field to our Record Update.  We can use the Amount variable here, because we just assigned the Screen Input value to that variable.

recordupdateop

From here, I find the easiest thing is to just route this back to the original Decision and see if it meets the criteria to proceed on.  You can determine how strict and customized you need your routing to be, but if you can keep it simple try to do so.  Mapping the Record Update back to the Decision Element gets us our finalized Flow.


Let’s Save the Flow and then Activate it.

save-flow

activateflow

Now, let’s go create a new Button on our Opportunity   (Setup | Customize | Opportunities | Buttons, Links, and Actions)


For the Button you’ll want to go grab your Flow’s URL.  This was on the Flow Detail page.


Paste that in, and we’ll add in the variable assignment for our Button.

action

Save, and then drag the Button onto your Opportunity Layout.  You’ll want to check the API Name when you hover over the Button to ensure you’ve selected your Custom Button and not the Standard one.

Add To Layout.jpg

All that is left is for you to test it out!


Hopefully this post was able to stir up some ideas of what is possible for you to do within your own Org!

















Understanding how Two-Column Screens work in Visual Flow

When I saw the release notes for Winter ’17, I was very excited about the ability to have two-column screens inside of Visual Flow.  When I first published my release notes highlights, there wasn’t any documentation out on how this was going to work.  Salesforce just published the Developer Documentation around the Winter ’17 Preview, and now we can start see the features with more clarity.  So, let’s dive right into this new feature!

You can find the Developer Documentation here on this feature.

Pre-requisite: You must Enable Lightning Flow Runtime for Flows to be able to use this feature.  From Setup, enter Process Automation Settings in the Quick Find box, then select Process Automation Settings.  Select Enable Lightning Flow Runtime for Flows.  Save your changes.

How can you use the Two-Column Layout?

Through a URL Parameter into your Flow, just like you would the Record ID or another variable.  Take a look my post on How to write a URL for your Flow if you need a refresher here.  It is going to look like this:

/flow/flowName?flowLayout=twoColumn

If you’re dropping your Flow into the Lightning App Builder using a Flow Component, you can also control the Layout in that component.  Simply choose the Two-Column Layout in the Flow Component’s Layout selector.  This defaults to One-Column (as you would expect).


How does the Two-Column Layout work?

Very similar to the standard Page Layouts.  You can determine the order of the fields, and every field alternates from left to right.  Be warned, it can look somewhat funky when you have fields that are not all aligned.
one-column

two-column-order

Things to keep in mind…

The Layout is for ALL Screens in your Flow

Let me reiterate this.  When you select your Layout, this is for ALL Screens inside your Flow.  You simply can’t control the column layout at the Screen level.  Another thing to keep in mind, is you’re selecting the Layout when you’re using the Flow.  This is all done in the URL or in the individual Flow Lightning Component – not when you Save or Activate your Flow.

Only available with the new Lightning Skin

Your Flow can be viewed in both Single and Double Column layouts.  If you have a Flow exposed on a Visualforce Page, you will not be able to select Two-Column Layout (at this time).  Flow’s launched by Visualforce will not use the new Lightning Skin, and thus this feature is not available.


Tab-key Order not customizable

You’re unable to change user’s Tab-key Order in the Two-Column layout.  It is automatically set to Top-Down.  If you’re not quite sure what I mean, the Tab-key Order is something that you’ve see in every Section Properties in a Page Layout.  This is not a huge issue to me, but I think it could annoy your Power Users who use Tab-keys efficiently.


Responsiveness

The Two-Column layout doesn’t care what the size of the user’s screen is.  Which means it is not mobile responsive.  This is something you’re reminded of in the Lightning App Builder through a Help Bubble, but not when you’re using a URL parameter.  Make sure you keep that in mind when you’re deciding to go with a Two-Column Layout.


Recap: The new feature of having Two-Column screens comes with some drawbacks.  We’re not able to control Screens separately inside one Flow.  Right now if you’ve got something that you want to be accessed through a URL button (and not a Visualforce Page housing the Flow), then this will be a great solution for you.  I am hopeful this is just the beginning and we’ll soon be able to customize this at the Screen level, but we’ll see with time if I’m being overly optimistic.

How to use Case Comments with Communities in the Service Console Feed View & Salesforce1

This past week I had someone who is looking to use Case Comments in the Service Cloud, but wanted it to be listed as an Action in the Feed.  I thought it would be a good use case of many different tools within Salesforce being used together.  I am looking at possibly doing this with code and basing it off this post, but for now I figured that I’de show you how without code.  Let me be clear that if you’re not using a Community that you can simply use the Internal Comments field instead without having to do anything.  The only negative of going with this solution is that you’re not going to have your Case Comment Chatter Post visible until your Chatter feed is refreshed, but that is something that also happens with the Internal Comments field.  The Case Comment record is visible instantly.  And this works nicely with Salesforce1.  With that said, let’s jump right in!

Automation Overview:

  1. Inputs for Case Comment received (Action)
  2. Process Builder triggered (Pass inputs into Visual Flow)
  3. Case Comment created in Flow

For this solution we have two different options in how we can do it architecturally:

  1. Record Create – Create new Custom Object
  2. Record Create – Create new Task Record
  3. Record Update – Use Custom Fields on Account/Opportunity

For me, because of not wanting to further complicate the Task Object and not wanting to add excess fields to the Case Object, I’m going to go with option 1 and create a new Custom Object.

How will we build this?

  1. Create the Case Comment Extension Object
  2. Create our Visual Flow to create the Case Comment
  3. Create our Process Builder to launch the Visual Flow
  4. Create our Action on the Case

For this solution we have two different options in how we can do it architecturally:

  1. Record Create – Create new Custom Object
  2. Record Create – Create new Task Record
  3. Record Update – Use Custom Fields on Account/Opportunity

For me, because of not wanting to further complicate the Task Object and not wanting to add excess fields to the Case Object, I’m going to go with option 1 and create a new Custom Object.

What fields do we need create in this Custom Object?

  1. Auto Number
  2. Case (Master-Detail)
  3. Comment (Long Text Area)
  4. Public (Checkbox) Note: this only applies if you have a Customer Community.

CaseCommentExtensionObject

Let’s get our Flow created first since we can’t Activate the Process Builder without it  (Setup | Create | Workflows & Approvals | Flows).

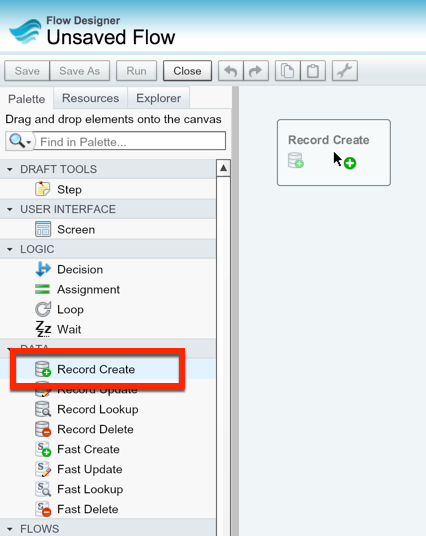

The first step is going to be grabbing our Record Create.


We now need to create the variables we will use to create the Case Comment.

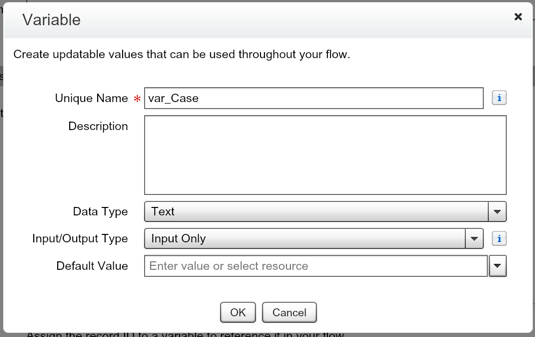

Case Id

CaseCommentParentIdVariable

IsPrimary (This is a BOOLEAN, not Text)

CaseCommentIsPublishedVariable

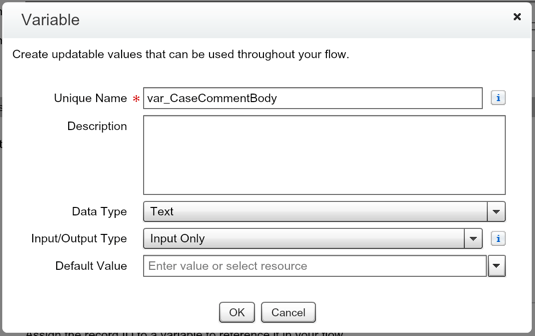

CommentBody

CaseCommentBodyVariable

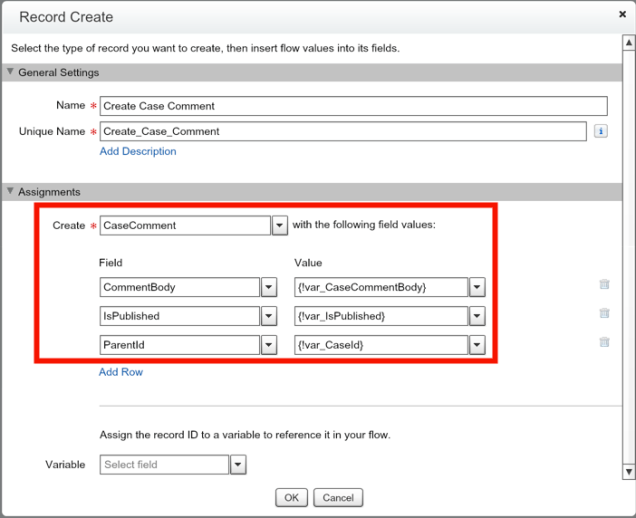

Lets make sure everything is correctly mapped inside our Record Create.

CaseCommentCreation

Great!  So lets hit OK and set this as our Starting Element.

SetAsStartElementCaseComment

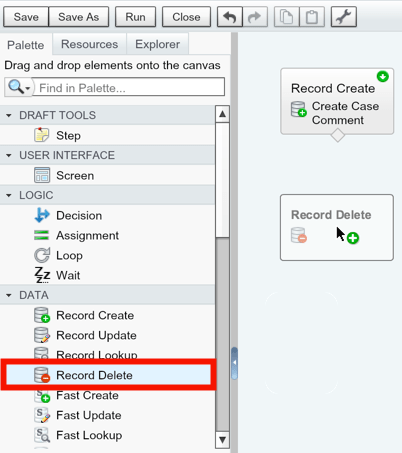

Now lets drag in our Record Delete.  This is so that we don’t add useless data into Salesforce.

RecordDeleteDrag

Create a variable for the Record Id of the Custom Object record we just created, when our Action is used.

var_CaseCommentExtensionId

Map it in our Record Delete.

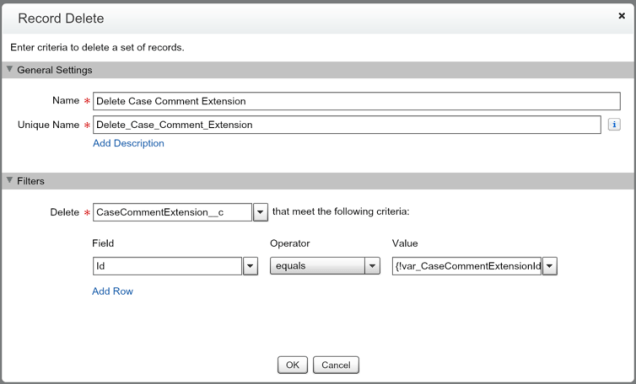

DeleteCaseCommentExtension

Connect the elements together to finish our Flow.

FinishedFlow

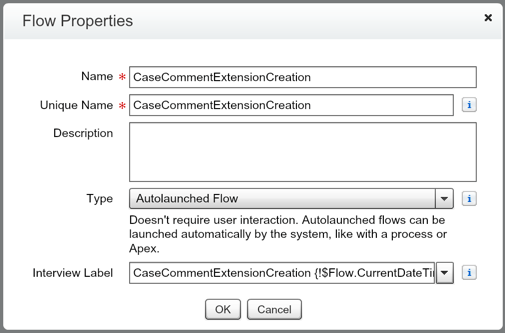

And lastly we want to Save and then Activate our Flow!

SaveCaseCommentFlow

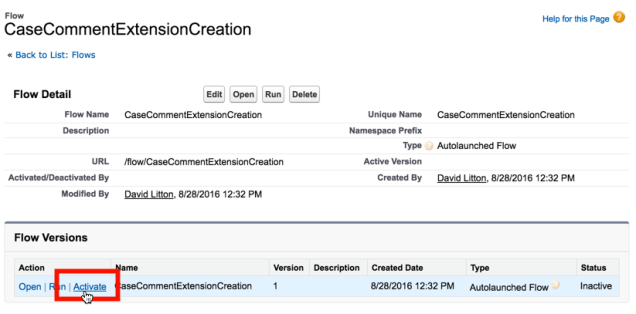

ActivateCaseCommentFlow

Fantastic!  Now we need to setup our Process Builder that fires this Flow.  So lets go create a new Process Builder for this.  (Setup | Create | Workflows & Approvals | Process Builder)

CaseCommentExtensionPBCreation

We want the Process Builder to fire on our Custom Object that we created, Case Comment Extension, and we want it to fire only when a record is created.

CaseCommentExtensionPB1

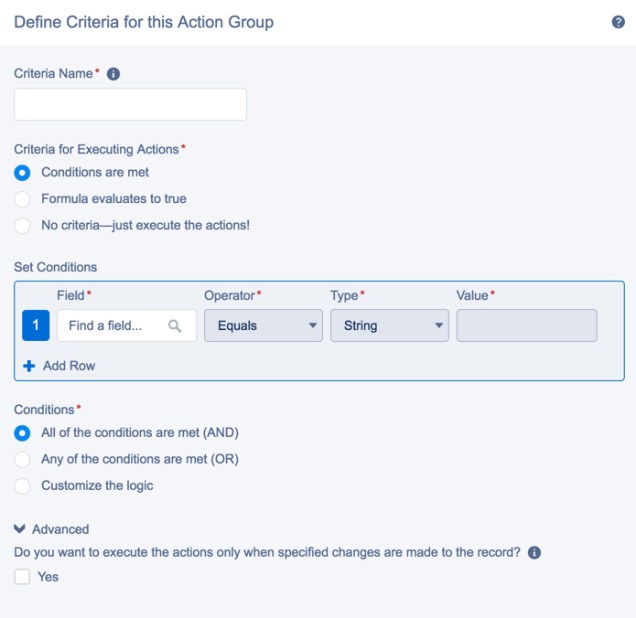

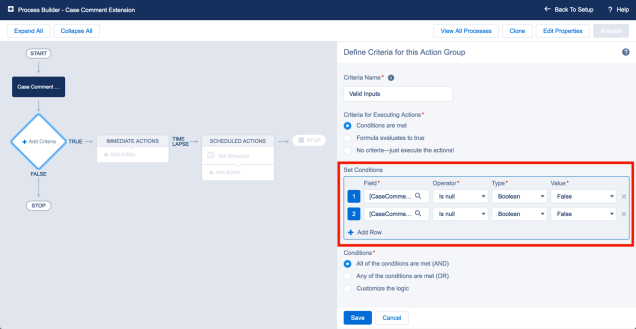

We don’t need to set any criteria here, but to be safe let’s just make sure that we have a Case ID and Comment before proceeding.

CaseCommentExtensionPB2

Now we need to map the variables in our Flow to the Values in the Custom Object, using the Type Reference.

CaseCommentExtensionPB3

Hit Save, then Activate your Process Builder. Now, lets navigate to go create our Action.

CaseCommentActionNewButton

Keep it on the default, Create a Record, and select Case Comment Extension (our Custom Object we created earlier).

CaseCommentAction1

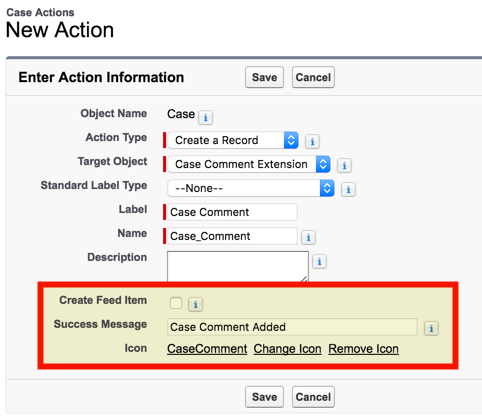

Let’s make sure we turn off the Create Feed Item, so we don’t spam the Chatter Feed since the Case Comment itself will cause a Feed Item to be created.  Also, make sure we add in a nice Success Message and custom Icon to make the action look sharp!

CaseCommentAction2

Remove the Case Field and drag Public and Comment into the Action’s Page Layout.  Make sure you require the Comment field.

CaseCommentAction3

It will give you a small popup warning you about not having the Case field on the Layout, but you can ignore it and move on.

CaseCommentAction4

We now need to setup a Predefined Field Value for our Case field.

CaseCommentAction5

Set Case.Id to our custom Case field.

CaseCommentAction6

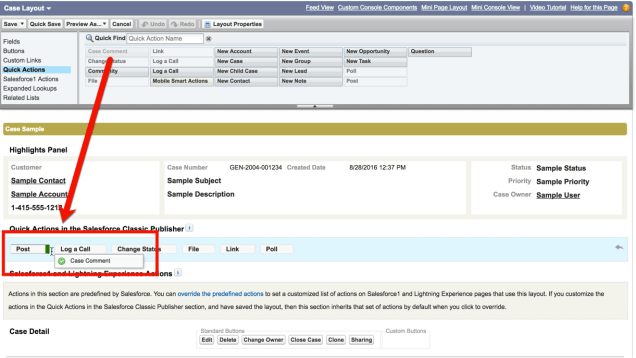

Now all that is left is for us to update our layout(s)!

CaseCommentActionToLayout

And with that, lets take a look at the finished product!
